Low frequency glass tube RFID label specification ZJBLG0212B

Low frequency glass tube RFID label specification ZJBLG0212B

Ⅰ Overview

————————————————————————————————————————————————————————————————

The glass tube biological electronic label is suitable for small animals: cats、dogs、 rabbits、 minks、 raccoons、 foxes、dragon fish etc. The glass tube electronic label can be divided into read-only and read-write modes. The maximum storage capacity is 2Kbits. It is made of biochemical medical materials, processes, and production. It conforms to ISO11 784/85 international standards. It uses the most advanced Bioglass material at present to effectively prevent dissociation and zero rejection of animals. At present, it has been widely used at home and abroad, Effective management and control of animal growth and breeding, comprehensive tracking and management of the entire process of animal growth.

Ⅱ Features

————————————————————————————————————————————————————————————————

◆ With paralene coating onto the surface of the microchip to prevent the migration in the animal body.

◆ Biological glass material ensure safety and no harmful to pets.

◆ ICAR certification, complian to ISO11784/11785 standard.

◆ Supereme reading performance, better 20% than others.

◆ Covered FDX and HDX solution with 1.25*7, 1.4*8, 2.12*12,3*13 microchip

Ⅲ Description

————————————————————————————————————————————————————————————————

◆ Frequency：134.2±3KHz、125±3KHz

◆ Function：Reading、Writing

◆ Dimension：2.12*12mm

◆ Material：Biological glass

◆ Compliant with standards：ISO11784/11785

◆ Agreement：FDX-B、HDX

◆ Operation temperature：-25 ºC - 85 ºC

◆ Storage temperature：-40 ºC - 125 ºC

◆ Microchip type：EM4305 / ZJXP41

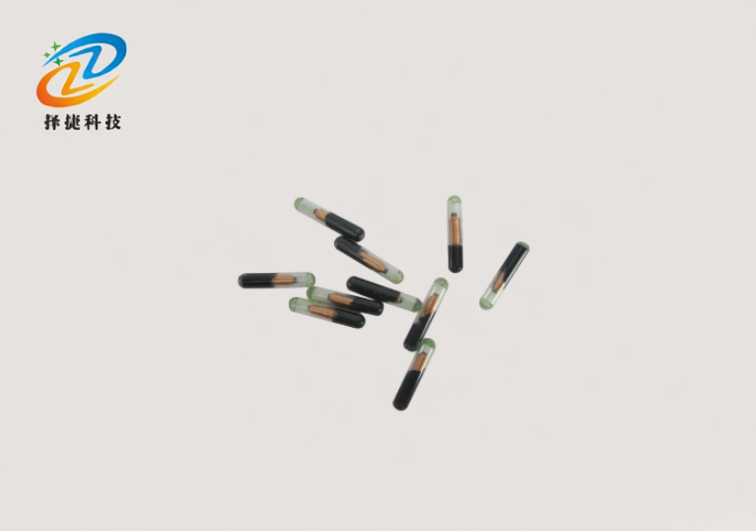

Ⅳ Product Image

————————————————————————————————————————————————————————————————

Ⅴ、Display of the use of injection needles

————————————————————————————————————————————————————————————————
