Ⅰ 产品简介
名称：超高频读写器陶瓷天线ZJTCTX-2DBI
Ⅱ 主要技术参数
| 天线（Antenna） | ||
| 1 | Antenna model(天线规格) | 7060D（60mm*60mm*5mm） |
| 2 | Frequency Range(频率范围) | 922MHz±2MHz |
| 3 | V.S.W.R（驻波比） | 1.5 MAX |
| 4 | Band With@10dB(10dB带宽) | 5.5 MHz MIN |
| 5 | Gain(增益) | 4 dB typ @70mm*70mm groundplane |
| 6 | Impendence（阻抗） | 50Ω |
| 7 | Polarization（极化方式） | RHCP |
| 材料（Material） | ||
| No | Part Name | SPEC |
| 1 | Antenna | Dielectric Ceramics |
| 2 | PCB | FR4 |
| 3 | Bridge(电桥) | HCO900A03 |
| 4 | Resistance（电阻） | 100Ω(0402) |
| 5 | RF Cable （线材） | RG316 |
| L=20.5cm | ||
| 6 | RF Connector（接头） | SMA公头内针 |
| 环境条件（Environment Condition） | ||
| 1 | Working Temp（工作温度） | -40℃～+85℃, 10%～95% RH |
| 2 | Storage Temp（贮存温度） | -55℃～+100℃, 10%～95% RH |
| 3 | Vibration（震动） | Sine sweep @1.5mmAM 10~55Hz each Axis |
Ⅲ 测试图表（Testing Curve）

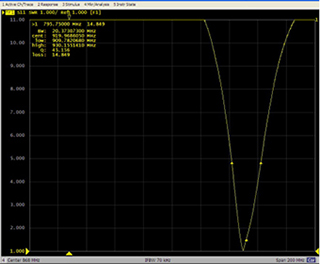

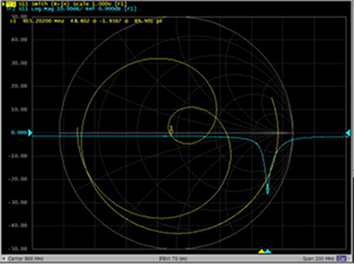

天线阻抗及驻波比（Patch Simth& VSWR）

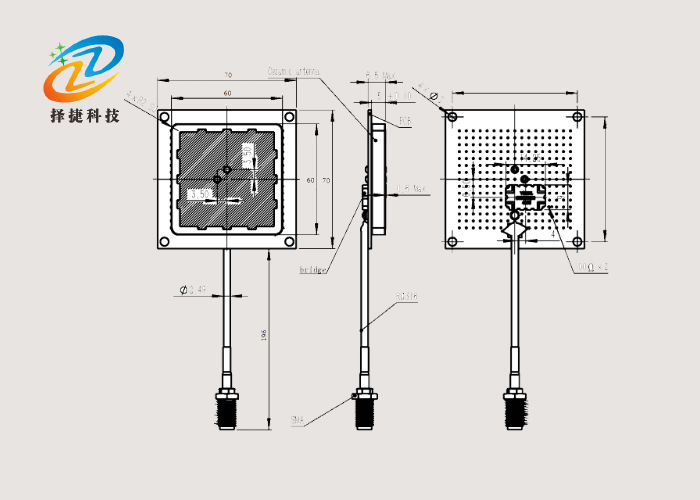

Ⅳ 结构图（Structure）
Ⅴ 注意事项（Note）
1、This product specification guarantees the quality of our product as a single unit. Please make sure that your
product is evaluated and confirmed against your specifications when our product is mounted to your product.
2、The product will get free warranty for three months since the date of purchase users operate in the correct
way; users will have to pay cost of the materials and maintaining fee out of the condition.
3、Electrostatic sensitive device.Observe precautions for handling.
product is evaluated and confirmed against your specifications when our product is mounted to your product.
2、The product will get free warranty for three months since the date of purchase users operate in the correct
way; users will have to pay cost of the materials and maintaining fee out of the condition.
3、Electrostatic sensitive device.Observe precautions for handling.

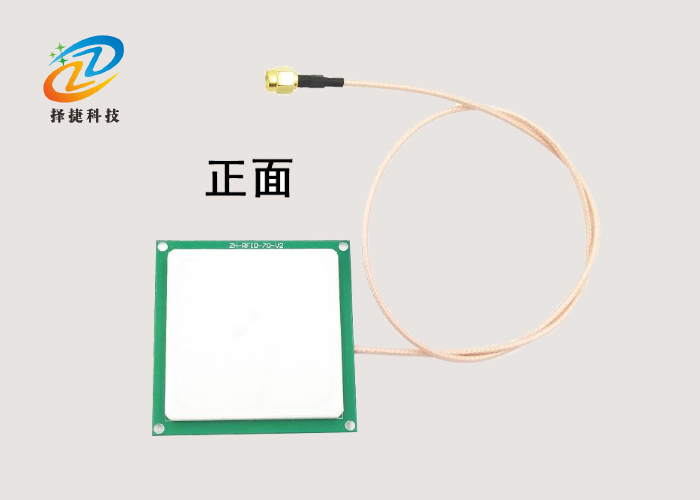

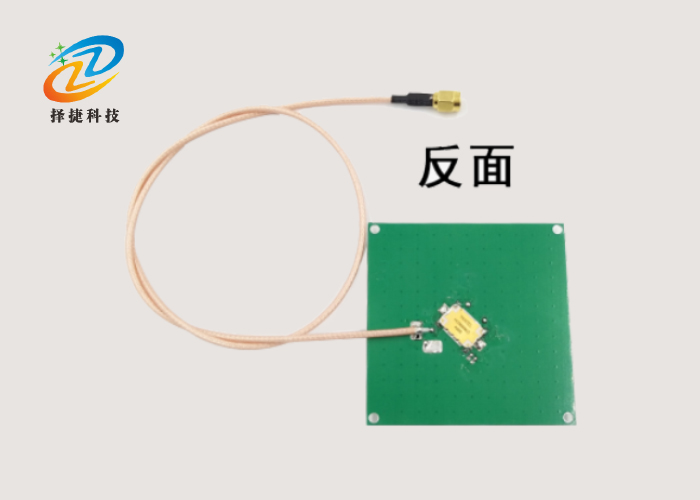

Ⅵ 产品实拍
实拍展示
