灯光提醒超高频RFID档案标签

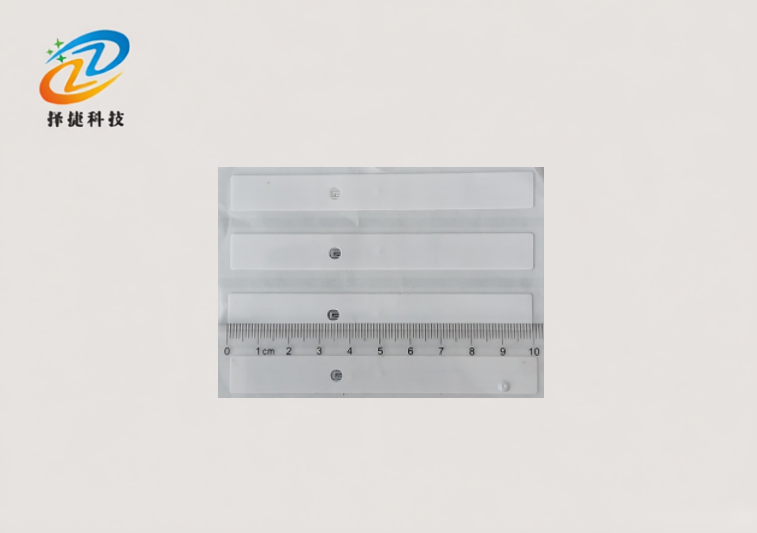

Ⅰ 产品图片

————————————————————————————————————————————————————————————

Ⅱ 基本参数

————————————————————————————————————————————————————————————

◆ 尺寸/Size（L/OD x W/ID x H)：100*12*0.28mm(ID & OD圆形内外径/ID & OD means inner & outer diameter of round tag)

◆ 面材封装/FaceStock or Housing：可打印铜版纸/Printable Coated Paper

◆ 安装方法/Installation：胶粘/Adhesive

◆ 天线工艺/Antenna Type：铝天线/Aluminum Antenna

◆ 技术/Technology：平面微带/Microstrip Flat Style

◆ 离型纸/Backing Liner：白色格拉辛离型纸/White Glassine Paper Liner

◆ 特征/Characters：普通(General)



Ⅲ 产品特性

————————————————————————————————————————————————————————————

◆ 芯片/Chip Model：超高频

◆ 协议/Protocol：ISO18000-6C GEN2

◆ 频率范围/Operating Frequency：920.5-924.5Mhz

◆ 内存/Memory：TID/UID Upto 192bit+ EPC/Block Upto 240bit+ User 1312bit+ Reserve 64bit

◆ 读距/Reading Range：150cm (depends on reader)

◆ 应用介质/Applicable Surface：空气(Air-free)

◆ 个性化选项/Option：定制彩色印刷条码文本或个性化编码Custom color printing(Embossing or laser-engraving) with barcode or text & personalization encoding

◆ 附加说明/Additional：灯的颜色：绿色

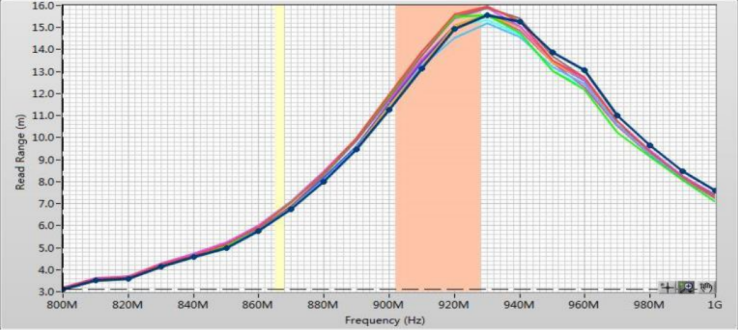

产品特性补充图

Ⅳ 供货方式

————————————————————————————————————————————————————————————

◆ 卷料供货每卷数量：1000-3000片(Supply in roll with 1000-3000PCS/Roll(Check Addtional Note for your specific needs))

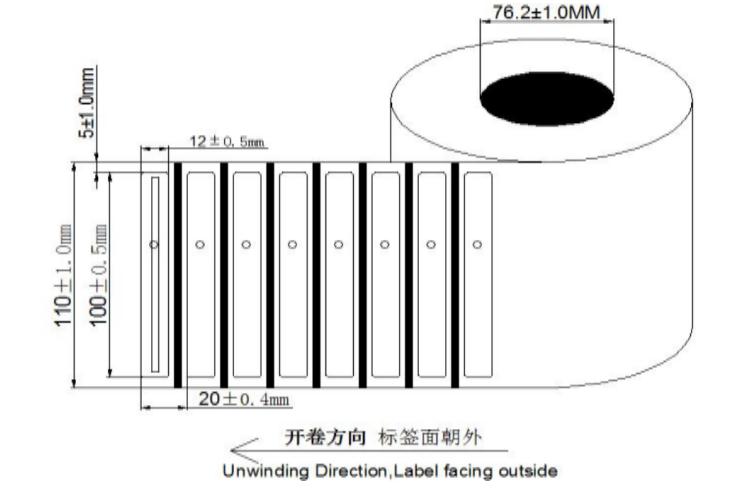

供货方式补充图

Ⅴ 应用场景

————————————————————————————————————————————————————————————

◆ 声光标签是在传统的RFID/NFC标签基本上增加了声光提醒功能，以便于在仓库、货站等物品管理中快速定位并找到指定物品（LED或Beeper声音提醒）广泛应用在库房，医院，图书馆，于盘点物品定位、货架定位、衣帽查找定位、 图书查找定位、档案查找定位为主要应用领域。Buzzer & LED tag is with an addtional reminder function basing on universal UHF/NFC tag, in order to guide position and find out the specific items from appointed area or location (mainly notice is LED or buzzer), widely used for warehousing, hospital, library system, help operators locating the objects on their needs quickly, especially item position, locate and easy pickup the good shelf & pallets, clothing, caps, books, documents and so on.

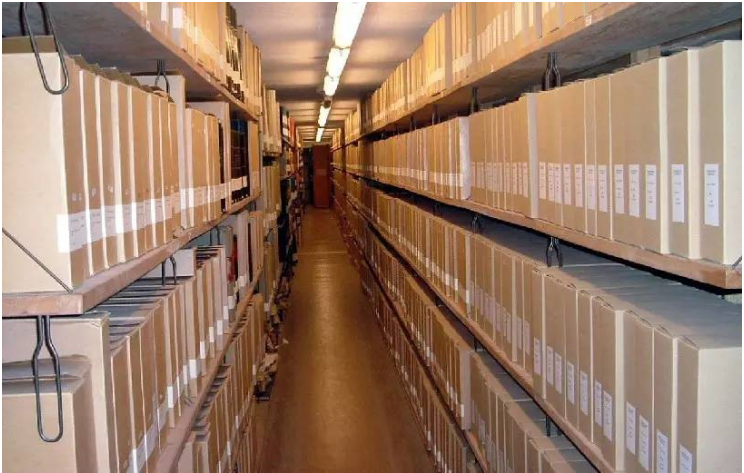

应用场景补充图



Ⅵ 环境参数

————————————————————————————————————————————————————————————

◆ 数据保存/Data EEPROM Retention：10years

◆ 静电保护/ESD Limited Voltage：2KV

◆ 工作温度/Operating Temperature：-35℃ - 85℃

◆ 储存温度/Storage Temperature：0℃ - 25℃

◆ 操作湿度/Relative Humidity：10%-95%(Variant Performance)
